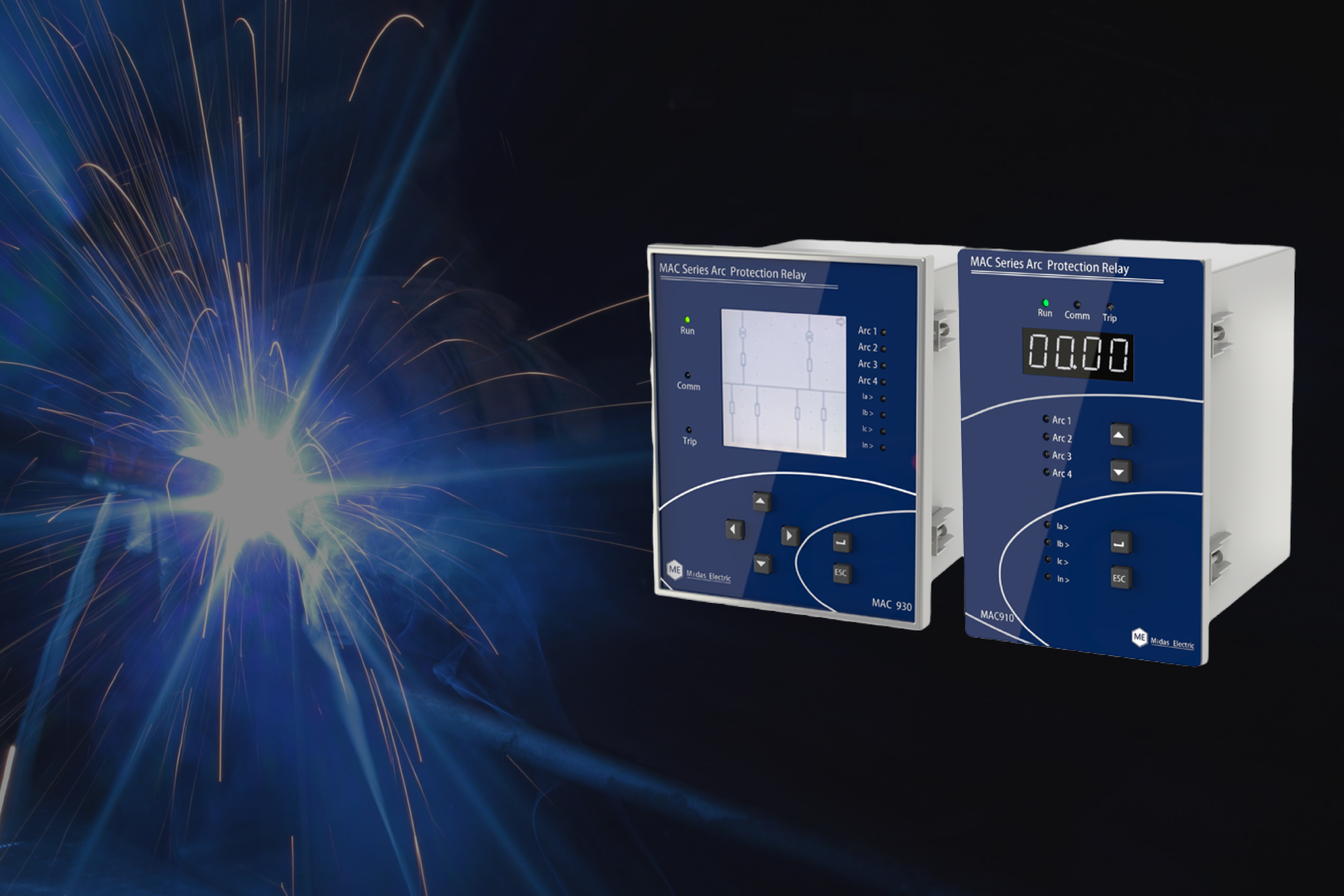

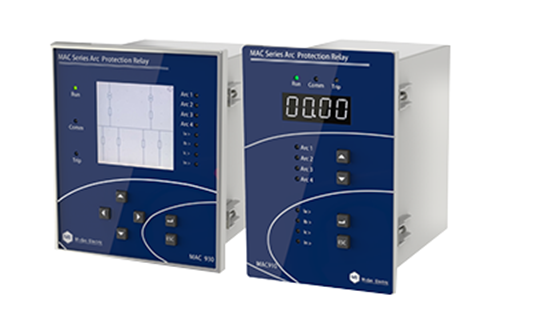

New Product Release | MAC Series Arc Flash Protection Device

The MAC Series is designed and tested in accordance with the IEC 60255 standard for protection relays, making it suitable for installation in a wide range of environments. It balances functional flexibility with ease of maintenance.

The MAC Series Arc Flash Protection provides a reliable arc flash protection solution that meets the application requirements of medium-voltage/low-voltage switchgear and control cabinets. The product line covers both basic standalone protection units and comprehensive system-level solutions.

Product Features:

• Complies with electromagnetic compatibility standards specified by IEC and VDE

• Uses industrial-grade processors and components

• Modular system architecture enables easy networking

• Flexible zone division to accommodate various applications

• Shielded connection cables ensure stable operation of the device

• Each unit can store up to 100 event records

• Main unit supports fault waveform recording with 32 samples per cycle

• Configurable trip output functions

• Capable of single 28-cycle fault recording

• Supports storage of up to 8 waveform records

• Equipped with user-friendly HMI and LED status indicators

• Supports single-line diagram display for complex systems

• Optional 2 ms high-speed trip output port

• Supports fault location and display on the single-line diagram;

  uses hardwired signal transmission for extended range

• Optional IRIG-B time synchronization to ensure system coordination
